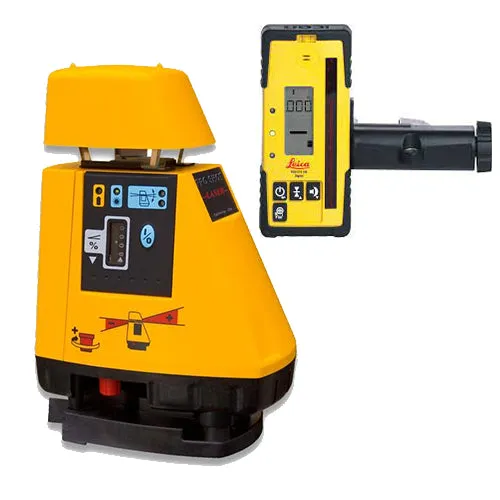

AS2 Rotary Grade with Leica Rod Eye 160
The Pro Shot™ AS2 laser level tool with Leica Rod Eye 160 is the class leader for delivering value in a precision slope laser. Dial-in up to a 25% slope, with resolution down to .01%. That is fine enough to set specified slopes straight from an engineer’s cut sheet on a sanitary sewer project. This servo self leveling laser won’t let you down, with degrading accuracy as higher slopes are entered, like its competitors. It is also fully self leveling when slope is dialed-in.
SPECIFICATIONS
| Range with R9 laser receiver Accuracy |
2000’ dia., 1000’ rad. (610m/305m) ± 14 arc sec. (± .080" per 100') (± 2.0mm per 30m) |
| Slope capability | 0 to 25% single axis, .01% increments |
| Self leveling type Range |
Servo motor ± 4 degrees |
| Height alert | Normally active can be disabled |
| Rotation coverage speed |
360º 600rpm |
| Machine control compatible | Yes, used with many brands of receivers |
| Warranty | 36 Month Guardian |
| Power source Life |
Four C-cells 115 hrs. nom. (alkaline) |
| Rechargeable batts. Life |
Optional Ni-Mh kit 85 hrs. nom. |
| Laser beam type | Visible 670nm |
| AS2 laser classification | CDRH and IEC Class 2 |
| Dust and water sealed | To international standard IP56 |
| Operating temperature | -4º F to 140º F (-20º C to 60º C) |
